Laser Processing Machines

FT-150 NEO

High-speed fiber laser processing machine for pipe material
  • U-axis control provides high-speed, high-accuracy cutting
  • The productivity of pipe mass production operation is automated and significantly improved
  • Optional drilling and tapping can be performed by just one machine
  • Reduced running costs with energy-efficient fiber laser
  • New graphical user interface (GUI) of the CNC system greatly improves operability

High quality and high productivity cutting of various pipes

Cutting of a variety of sizes and materials. High-speed, high-accuracy cutting by U-axis control

The FT-150 NEO is capable of processing round pipes with a maximum diameter of Φ6" and square pipes with a size of 5" per side. The laser head can be operated at high speed by U-axis and can cut materials such as mild steel, stainless steel, copper, brass, and aluminum with high speed and high-accuracy.

ft150f_pocessing_001

B-axis for bevel cutting as standard

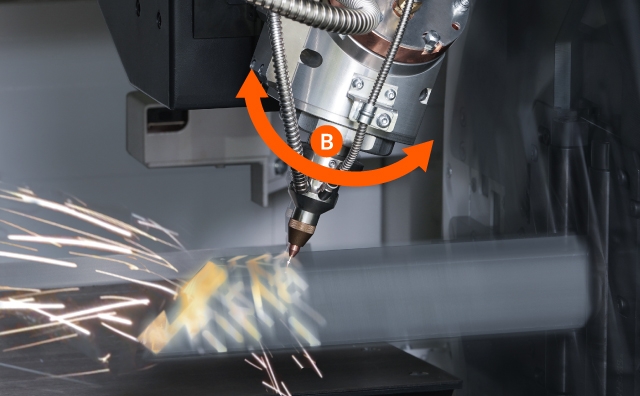

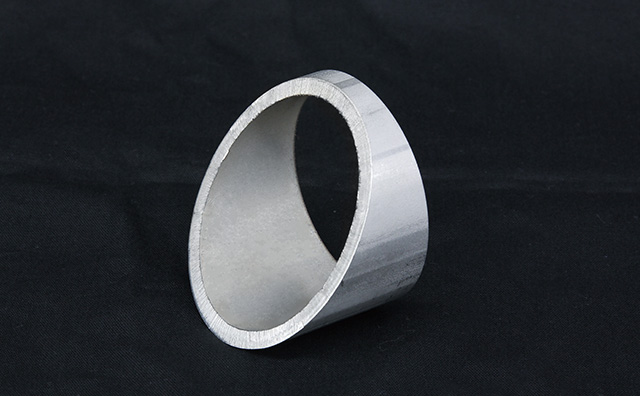

The laser head with B-axis can cut materials at desired angle. This ensures high-accuracy bevel cutting and improves the quality and strength of the joint.

ft_laserhead_001
ft150f_bevel_001

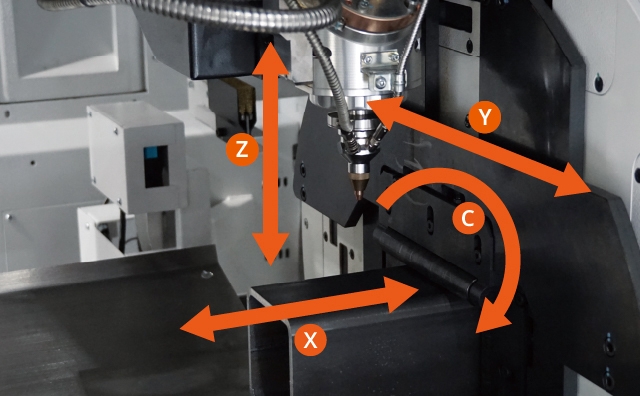

High-speed feedrate and chuck indexing speed

ft_structure_001
 FT-150 NEO
X-axis5906 IPM
Y-axis2559 IPM
Z- axis2559 IPM
B-axis19200 deg/min
C-axis54000 deg/min
U-axis2559 IPM

The productivity of pipe mass production operation is automated and significantly improved

By integrating the conventional pipe process, the FT-150 NEO reduces inter-process transfers, waiting time, setup time, etc., and completes all processing on a single machine. It shortens production lead time.

Reduce in-process time of pipe processing

Conventional process
1 : Cutting by Saw
2 : Blanking
3 : Bevel cutting with grinder
4 : Drilling
5 : Hole Tapping

FT-150 NEO
A : FT-150 NEO completes all processing on a single machine

ft_process_integration_001

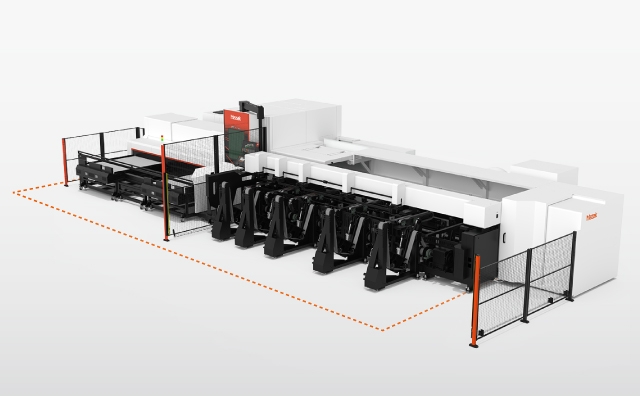

Large-capacity bundle loader

Materials are automatically loaded with a large-capacity bundle loader, and  after  laser processing, the cut parts are automatically unloaded.

After laser processing, the cut parts are automatically unloaded. An operator can interrupt the automaticbundle loading during a scheduled run and load material manually for imperative workpieces.

ft_structure_002

Rotary Tool Unit for drilling and tapping

Tools suitable for drilling, tapping and chamfering can be attached to the optional rotary tool unit. Also, the thermal drilling function and drill support, a supporter which hold the workpiece during drilling, comes with rotary tool unit as standard.

ft150f_option_003

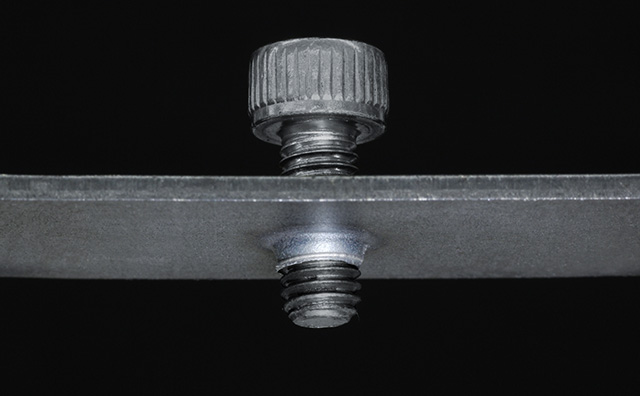

Thermal Drilling
ft_rotary_spindle_unit

Various optional functions for high accuracy and value cutting

ft150f_option_001
Work Center Location/Inclination Compensation

Check the work center of pipe material and automatically compensates for material distortion to ensure high precision positioning.

ft150f_option_002
Visual Seam Locator

The weld seam of pipe material can be detected on the machine to determine the required radial position for cutting.

ft150f_option_004
Internal Spatter Guard

The spatter guard protects the internal workpiece surface from spatters and burns, thereby preserving the quality of the workpiece.

Reduce running costs with fiber laser

The advanced technology of the fiber laser provides higher efficiency Since fiber laser processing machines do not require laser gas, they have low power consumption and are easy to maintain.

SmoothTUBE, a new CNC system for pipe processing

New graphical user interface specialized for tube processing ensures easier operation. It comes with a dual touch panel with large 21.5" screen. The flow from preparation to processing is displayed on one screen. Condition setting of scheduled operation can be changed and reprocessing can be done on the CNC system easily.

smoothtube
Upper monitor

Machine monitor and graphic menu

The Machine Monitor provides an overview of the machine with 3D images and important status updates, including the door's open / closed status. The Graphic Menu supports operators by providing easy access to the torch and machine operation menu. The machine's processing status are also displayed.

smoothtube
Lower monitor

Completely supports the processing status

The lower monitor assists the operator throughout the produc- tion process. The entire process can be monitored efficiently using the newly designed interface. The operator can modify the condition settings of scheduled operations and even reprocess selected parts with ease on the CNC system.

smoothtube

FT-150 FIBER

FT-150 NEO

* option
