2D AUTOMATION

LASER FLEX

High throughput automation system for production environments

LASER FLEX automation systems are designed for high volume production environments. They have a modular design and are available in a wide range of configurations and features that can be customized to facilitate throughput. LASER FLEX systems utilize independent load/unload functions to accelerate sheet-to-sheet cutting productivity. Sheets are loaded utilizing a suction cup based system and unloaded by a clamshell fork system. The clamshell forks can optionally be ordered with a SOFT TOUCH belt system to reduce the possibility of scratching finished workpieces. Towers can be added for load/unload capacity while cart systems and conveyors allow workpiece separation as production continues.

LASER FLEX systems are available in a variety of 3015, 4220 and reverse flow configurations. They can be integrated into an automated storage/retrieval system for even greater capacity.

Mazak’s LASER FLEX automation can also be designed to incorporate systems to separate parts and automatically load them onto pallets in production environments.

Configuration examples

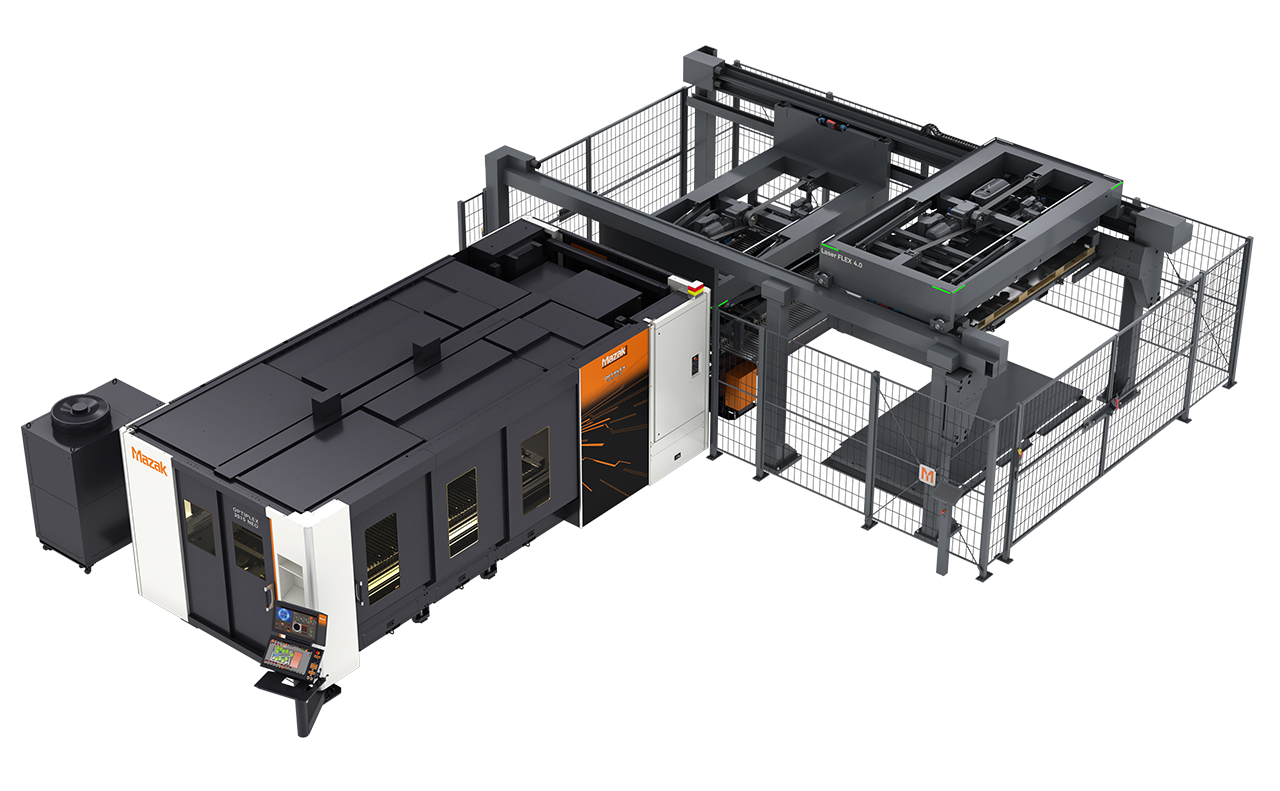

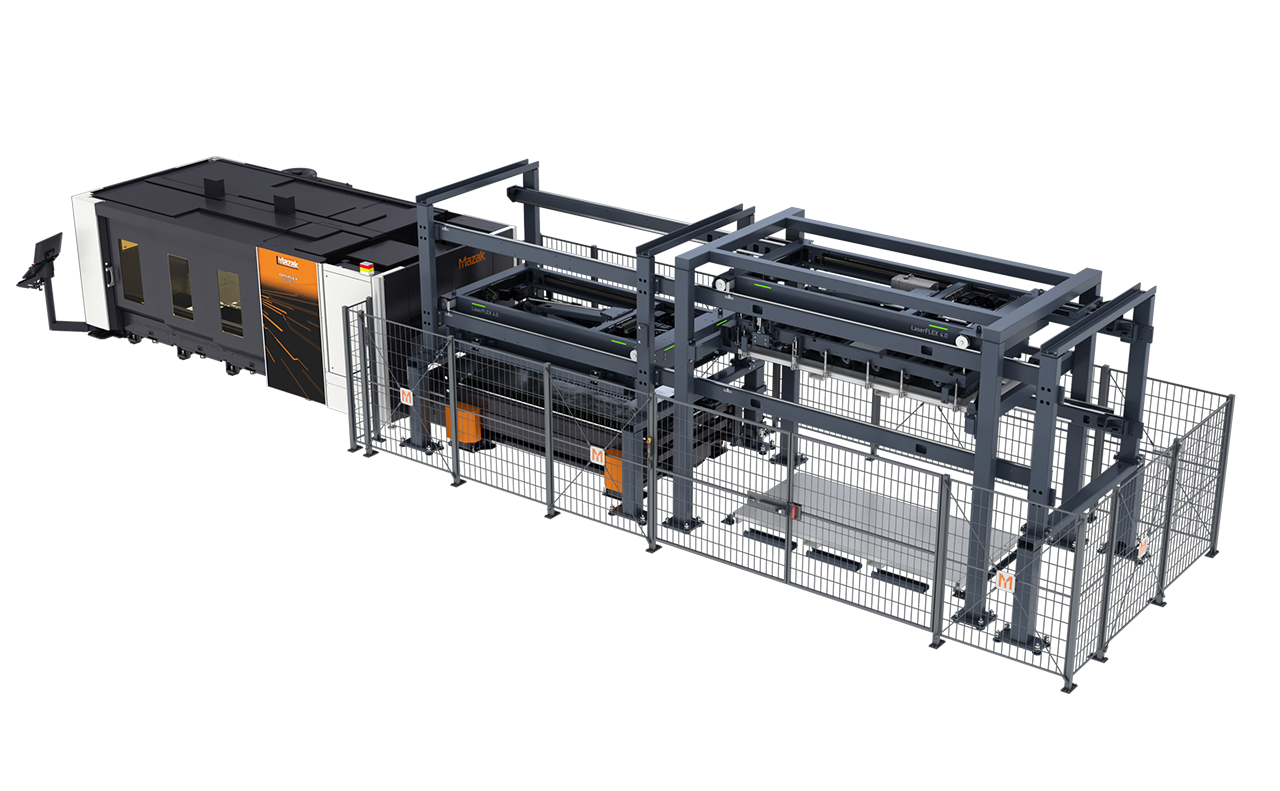

LF 3015 ONE LASER (LUL)

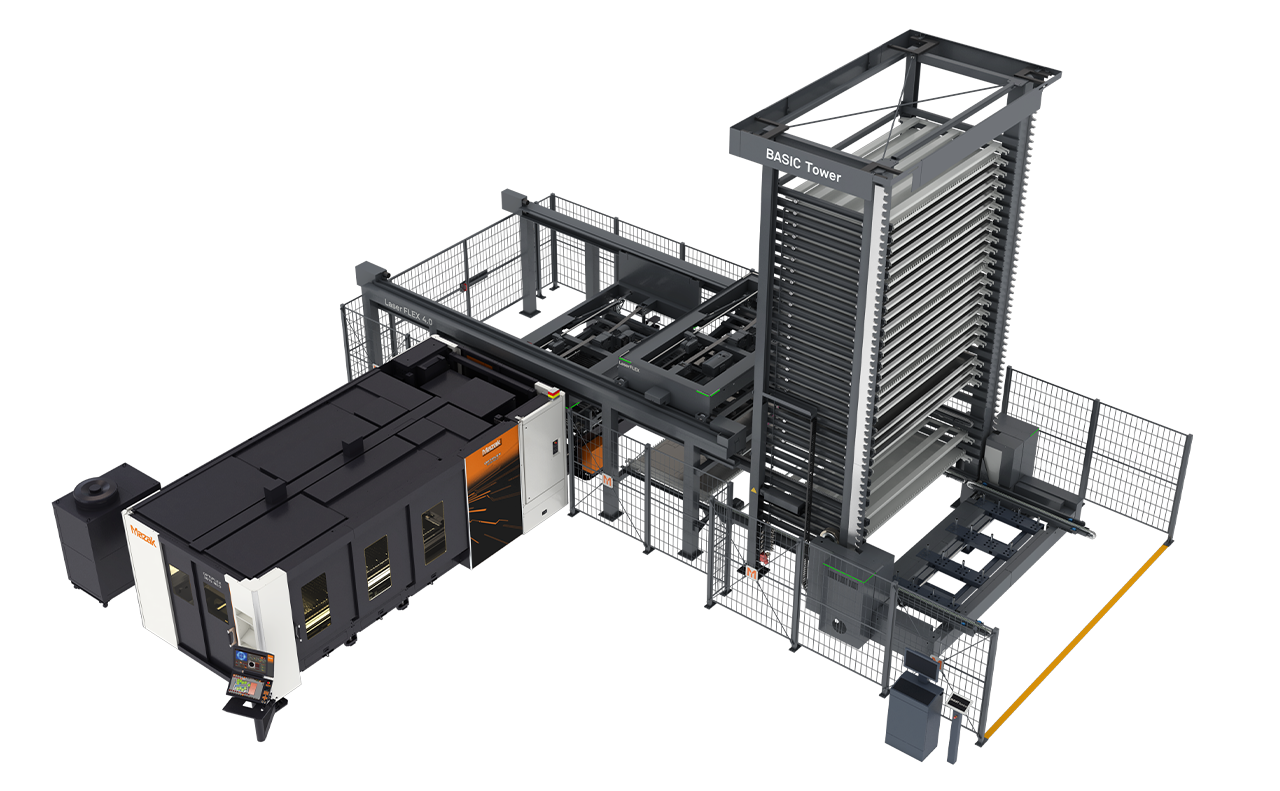

LF 3015 ONE LASER + ONE TOWER

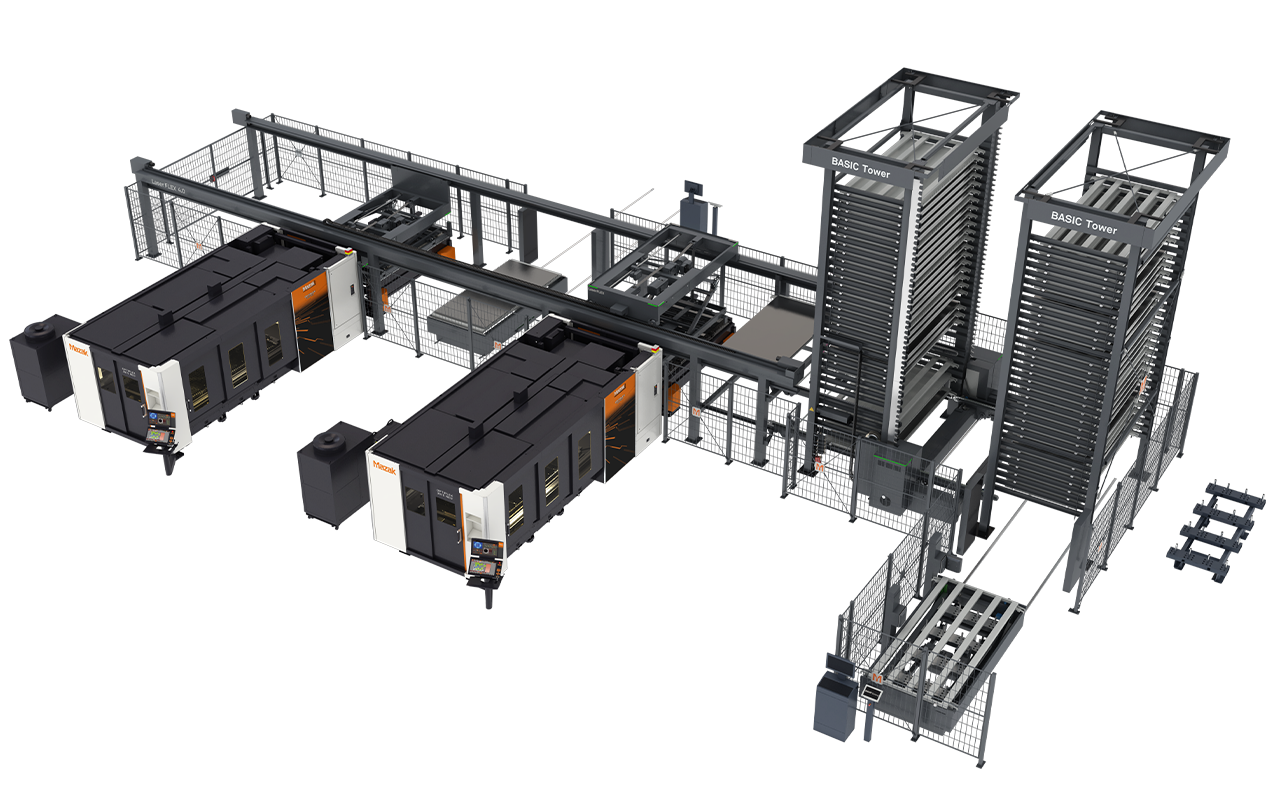

LF 3015 TWO LASERS + TWO TOWERS + UL CART

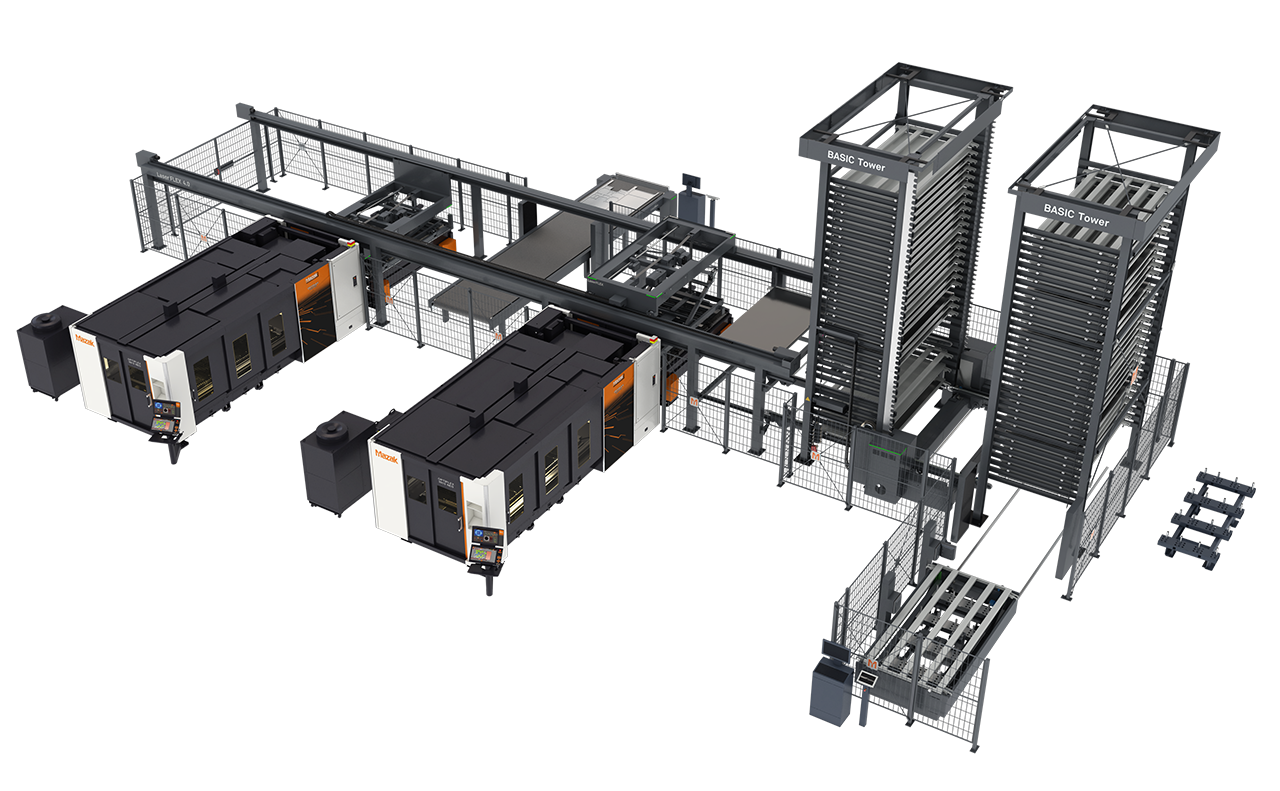

LF 3015 TWO LASERS + TWO TOWERS + UL CART

Video library

Automation specifications

Format30154220
Number of machines servicedUp to 3Up to 3
Maximum sheet size120" × 60"160" × 80"
Maximum sheet thickness1"1"
Maximum pallet capacity6614 lbs6614 lbs or 11023 lbs
Number of shelvesCustomizable to ceiling heightCustomizable to ceiling height
Material stack height3.54" standard (customziable)2.36" standard (customziable)
Loading typeSuction cupsSuction cups
Unloading typeRakeRake
Load/unload cycle timeUnder 60 seconds (based on one laser configuration) Under 80 seconds (based on one laser configuration)
Connections to AS/RYesYes
