2D AUTOMATION
C-SERIES
Compact and simple load/unload for narrow footprints
Mazak's C-Series is a simple load/unload system most suitable to place along the wall or limited floor space job shops. The system can be lateral or frontal configuration, and it comes with one load pallet and one unload pallet for continuous production. Available in a variety of 3015 and 4220 configurations, and it is limited to one-laser system.
Configuration examples

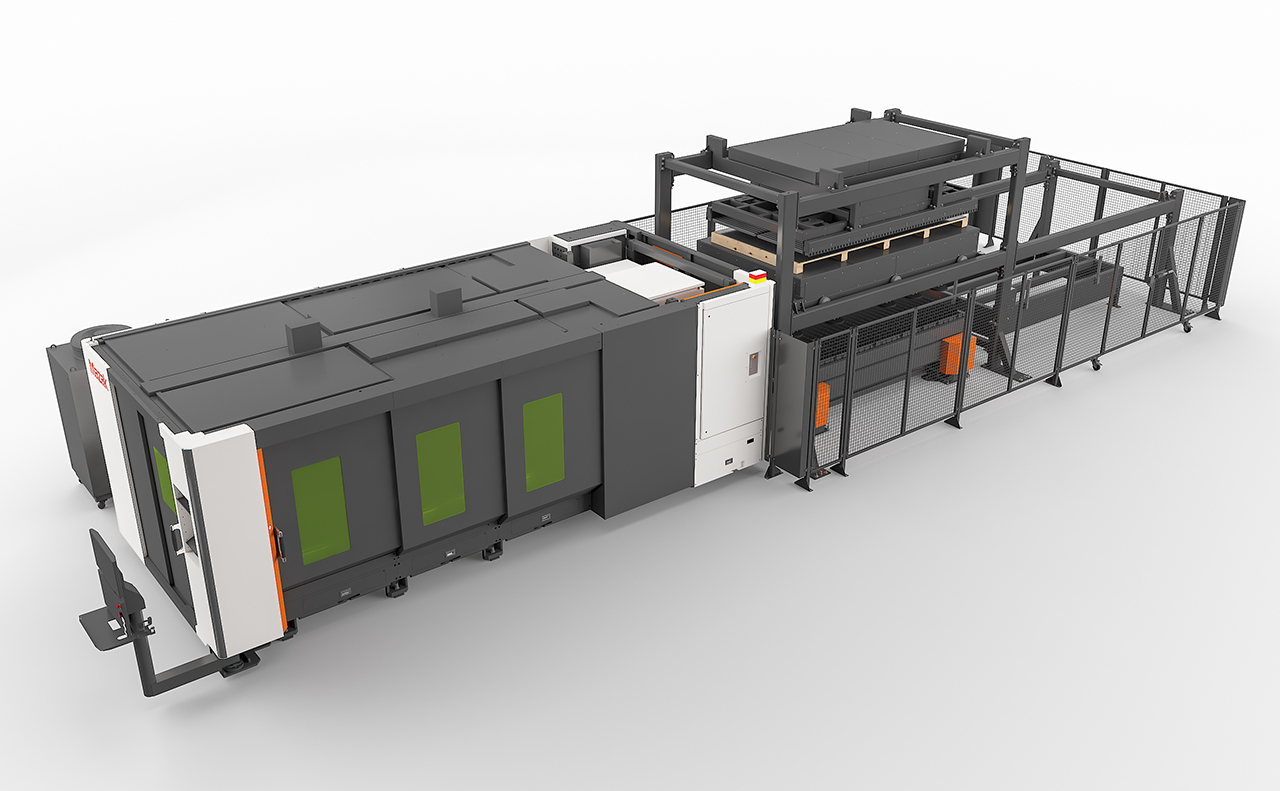

CSL 3015 ONE LASER (LUL - LATERAL)

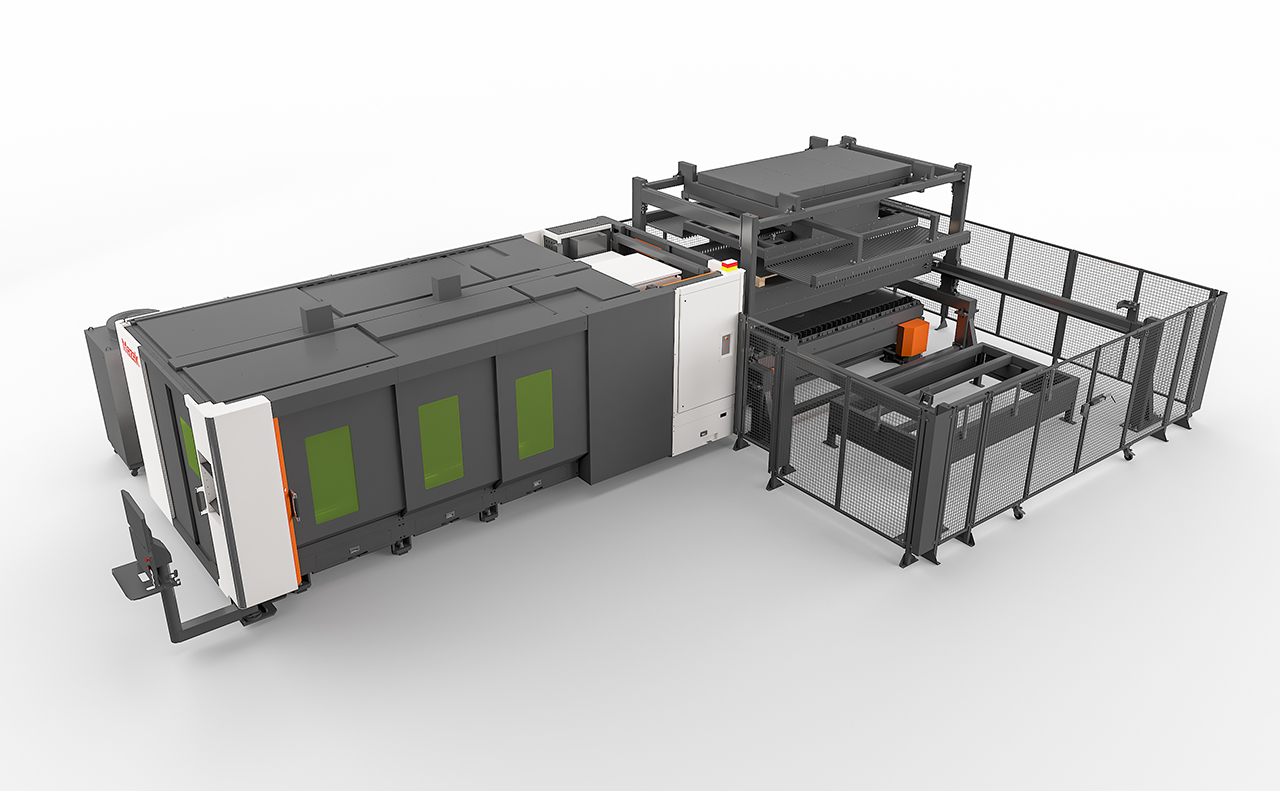

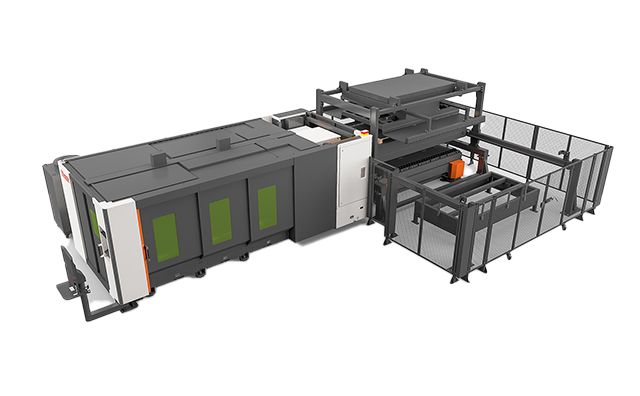

CSL 3015 ONE LASER (LUL - FRONT)
Video library
Automation specifications
Format | 3015 | 4220 |
---|---|---|
Number of machines serviced | 1 | 1 |
Maximum sheet size | 120" × 60" | 160" × 80" |
Maximum sheet thickness | 1" | 1" |
Maximum pallet capacity | 6614 lbs | 6614 lbs |
Number of shelves | 1 raw and 1 finished | 1 raw and 1 finished |
Material stack height | 3.35" / 3.54" | 1.89" / 2.36" |
Loading type | Suction cups | Suction cups |
Unloading type | Rake | Rake |
Load/unload cycle time | 60 seconds | 80 seconds |
Connections to AS/R | No | No |
