Automatic programming and setup support for Laser processing machines
MAZAK SMART SYSTEM
2D/3D CAD/CAM system for sheet metal processing
CAD / CAM system that drastically reduces preparation time in the sheet metal processing
MAZAK SMART SYSTEM supports effortless creation of solid modeling from orthographic drawings. It easily allocates parts based on drawings and instantly creates development drawing and work instructions, which can be directly imported into CNC system. Nesting data with the highest yield can be created instantly. In traditional CAM systems, the design process in CAD, manual nesting, creation of NC data using CAM, and nesting took a significant amount of time. However, our MAZAK SMART SYSTEM consolidates all of these processes into a single system. This allows for a reduction in lead time by a quarter or more compared to conventional methods. Additionally, it is possible to manage a vast number of programs collectively, and network setup is also made easier.
- Easy creation of solid modeling from orthographic drawings
- Instant creation of development drawings and work instructions
- Converted directly into NC data. Nesting data with the highest yield can be generated instantly.
TUBE DX
3D CAD/CAM system for pipe cutting

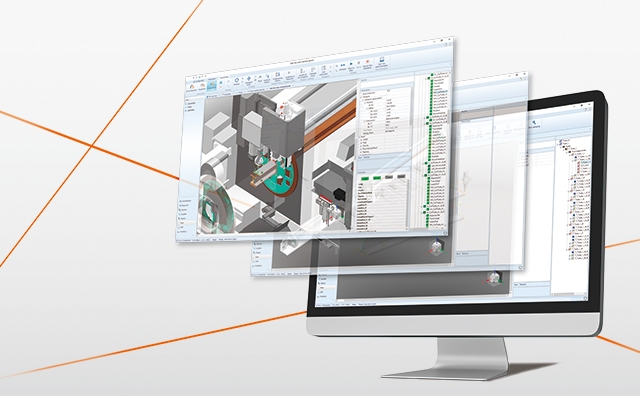

With TUBE DX, instantly create an easy operational program for 3D cutting of tube or pipe
- Easy to operate from drawing to nesting, simulation and scheduling
- Utilizing automatic nesting results in increased yield and reduces material waste

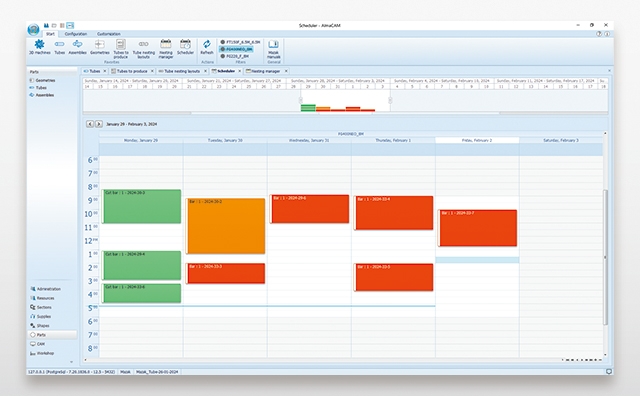

- The production status can be checked at a single glance with the scheduling function
- Automatic batch mode significantly reduces work time
Batch mode allows shorter programming

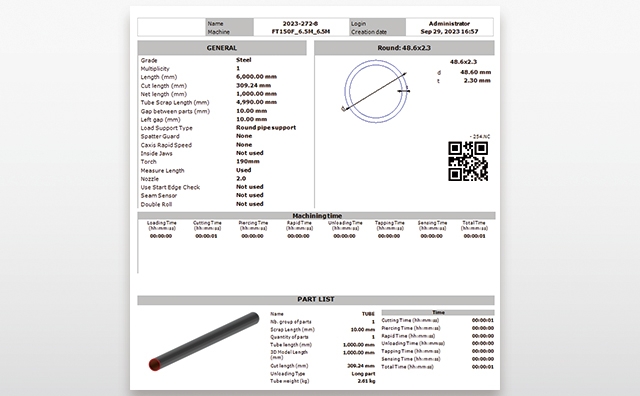

TUBE DX streamlines the programming process by automating tasks such as nesting, simulation, NC program output, and scheduling, which were previously done manually by an operator. As a result, the programming time and working hours are reduced.

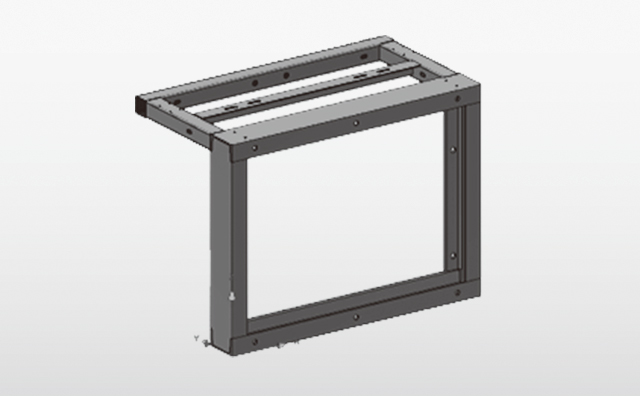

- 3D model design and automatic tooling

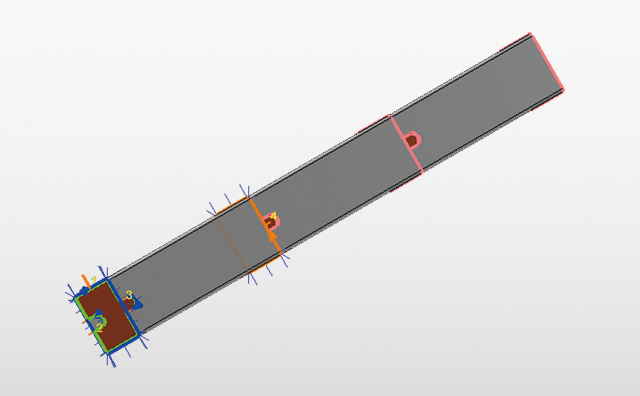

- Nesting

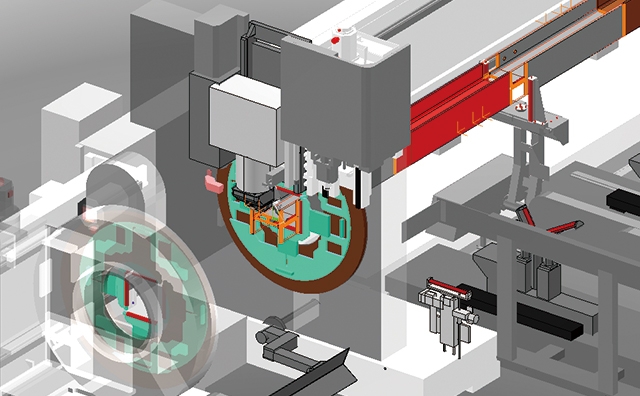

- Simulation
- NC program output
- Scheduling
Linking with CNC system - SmoothTUBE

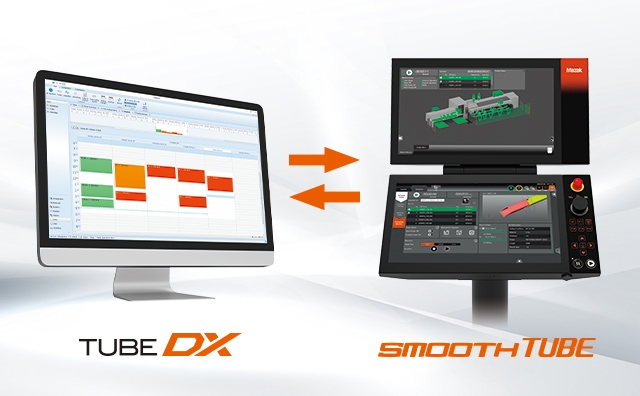

When the operation schedule and the required NC program information are sent from TUBE DX to the CNC system SmoothTUBE on the 3D laser cutting machine, the provided information is added to the scheduler screen on the machine. Additionally, the operation status and outcome can also be linked.
FX TUBE
3D CAD/CAM system for pipe cutting
Instantly create an easy operational program for 3D cutting of tube or pipe
- Easily operable by anyone from drawing to nesting, checking, and programming
- Offline programming to maintain high utilization rate of laser processing operation
- Instant creation of large volume and complex programs by importing 3D data from commercially available CAD systems

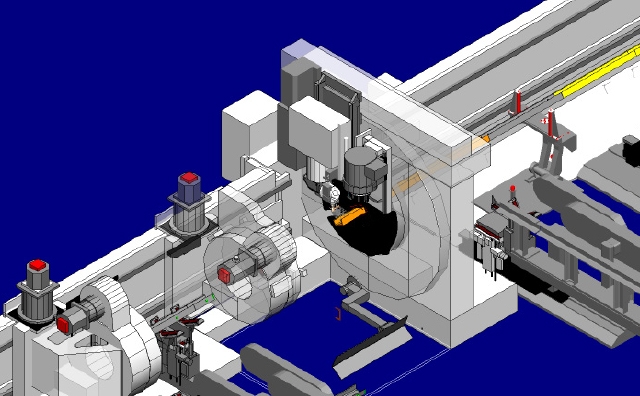

- Accurate program creation without interference enabled by simulating machine operations with FX TUBE
- Significantly shorten lead time for NC program creation and drastically improve productivity
