| Round pipe Max. workpiece diameter | Φ152 mm |
| Square pipe Max. workpiece diameter | □125 mm |
| Max. workpiece length (loading) | 6500 mm to 8000 mm* |
| Laser power | 3.0 kW |
Laser Processing Machines
FT-150 NEO

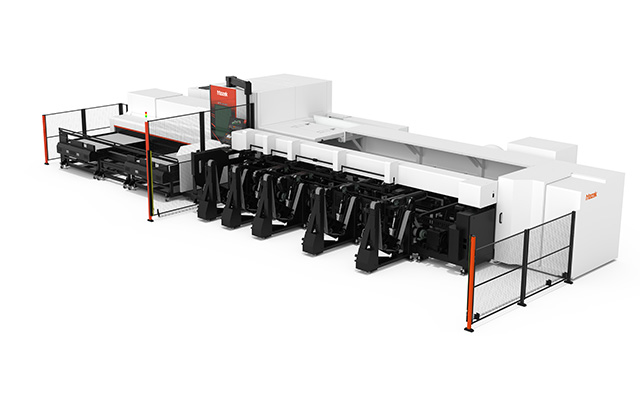

Laser processing machine for high-speed cutting of pipe material
- The productivity of pipe mass production operation is automated and significantly improved
- U-axis control is adopted to provide uninterrupted high-speed and high-precision cutting
- With optional rotary tool unit and drill support, drilling and tapping can be consolidated into one machine
- Equipped with SmoothTUBE, an innovative CNC system designed for 3D laser technology
High quality and high productivity cutting of various pipes
U-axis control for high-speed and high-precision cutting
The FT-150 NEO is capable of processing round pipes with a maximum diameter of Φ152 mm and square pipes with a size of 125 mm per side. The standard 3D laser head also allows bevel cutting. A variety of materials, including mild steel, stainless, copper, brass, and aluminum, can be cut at high speed and precision.
Process integration to improve productivity in mass production
Rotary Tool Unit for drilling and tapping
Tools suitable for drilling, tapping, thermal drilling and chamfering can be attached. After pre-drilling with a laser, tapping and chamfering can be performed from the same direction, resulting in less phase shift and tool damage.
Reduce in-process time of pipe workpieces
By integrating the conventional pipe process, the FT-150 NEO reduces inter-process transfers, waiting time, setup time, etc., and completes all processing on a single machine. It shortens production lead time.
Reduce in-process time of pipe processing
Previous processing
1 : Cutting by saw
2 : Blanking
3 : Bevel cutting with grinder
4 : Drilling
5 : Hole tapping
A : Complete all processes in same machine
Automation functions and machine design to achieve full automation of pipe mass production and high-productivity
With various automation functions such as calibration settings and nozzle cleaning, the productivity of pipe mass production operation is significantly improved.
Large-capacity bundle loader for continuous operation
Materials are automatically loaded into a high-capacity bundle loader, and after laser processing, the cut parts are automatically unloaded.
Structural steel and sudden interruption workpieces can be loaded manually.
An extensive range of optional functions are available to ensure high accuracy and value cutting
Work Center Location/Inclination Compensation
Measures the OD of pipe material and automatically compensates for material distortion to ensure high precision positioning.
Visual Seam Locator
The weld seam of pipe material can be detected on the machine to determine the required radial position for cutting.
Internal Spatter Guard
The spatter guard protects the internal workpiece surface from spatters and burns, thereby preserving the quality of the workpiece.
Designed for high efficiency
The loading and unloading of material is performed at the front of the machine to minimize operator movement and floor space.

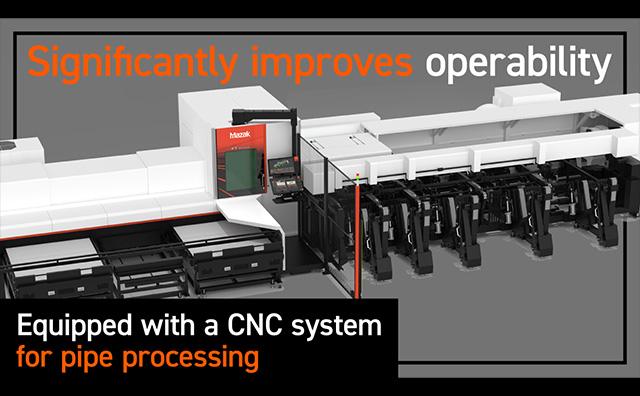

Equipped with a CNC system for pipe processing that significantly improves operability
SmoothTUBE, a new CNC system for pipe processing

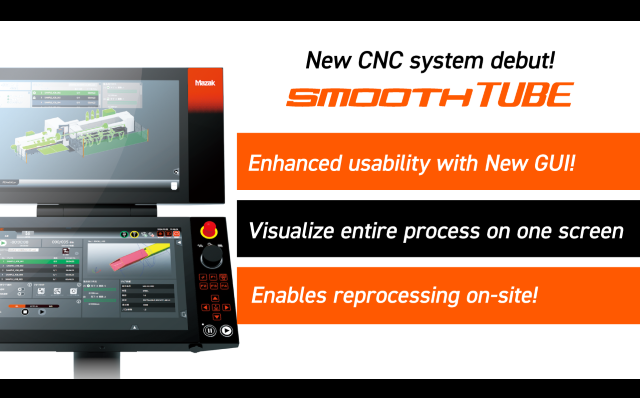

The SmoothTUBE CNC system has a new graphical user interface specialized for tube processing, which ensures easier operation. It comes with a dual touch panel with large 21.5" screen. Condition setting of scheduled operation can be changed and reprocessing can be done on the CNC system easily. The screen configuration that assists operators throughout the production process on one screen and system linkage support efficient pipe processing.
Machine monitor and graphic menu
The Machine Monitor provides an overview of the machine with 3D images and important status updates, including the door's open / closed status. The Graphic Menu supports operators by providing easy access to the torch and machine operation menu. The machine's processing status are also displayed.
Completely supports the processing status
The lower monitor assists the operator throughout the production process. The entire process can be monitored efficiently using the newly designed interface. The operator can modify the condition settings of scheduled operations and even reprocess selected parts with ease on the CNC system.
Reference Video
FT-150 NEO
*Optional
