CNC Turning Centres

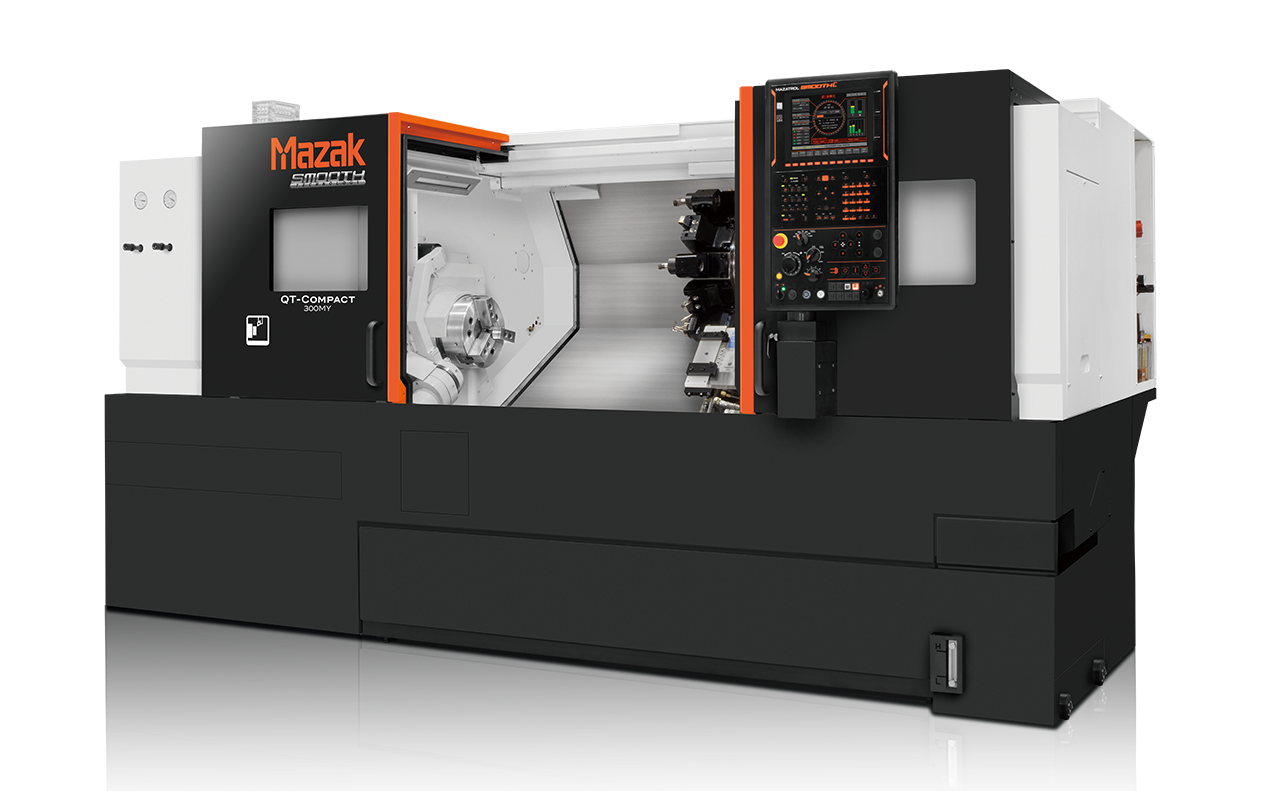

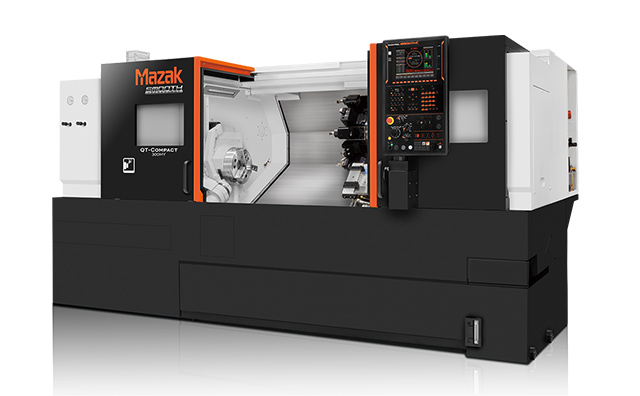

QT-COMPACT

Compact, high-performance CNC turning centres

High cost-effectiveness and rigidity
Extensive lineup for various applications such as turning, milling, Y-axis machining and second spindle options
Equipped with MAZATROL SmoothC CNC system, with outstanding operability and high-speed, high-precision control

Chuck size

High cost-effectiveness and rigidity

Integral spindle / motor to achieve high productiveness and high precision

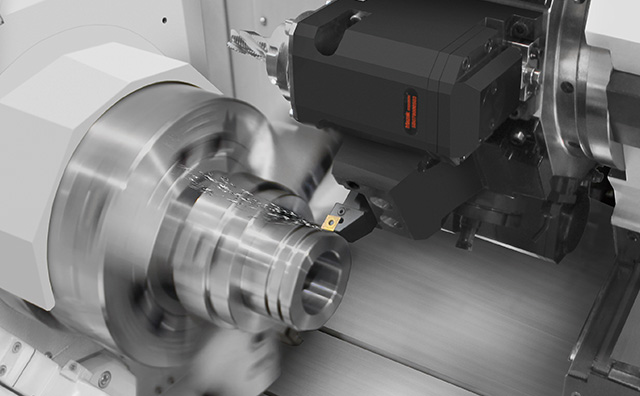

All series are equipped with integral spindle / motors, which allows various operations such as heavy-duty machining of ferrous metals, or high-speed machining of non-ferrous metals such as aluminium. Gears and belts, which are causes of vibrations, are not used to ensure high-accuracy.

The main spindle can also operate C-axis indexing in 0.0001°minimum increments and contouring.

100 Series: 6”

200 Series: 8”

300 Series: 10”

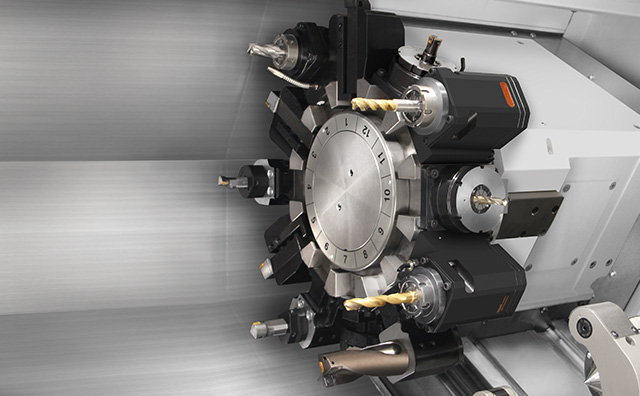

12 position drum turret with milling function

The drum turret is designed for minimum interference. By using non-lift rotary indexing, high-speed turret clamping / unclamping can be performed without interference. Tool holders are rigidly mounted on the turret by four bolts. A 24 position turret is also optionally available.

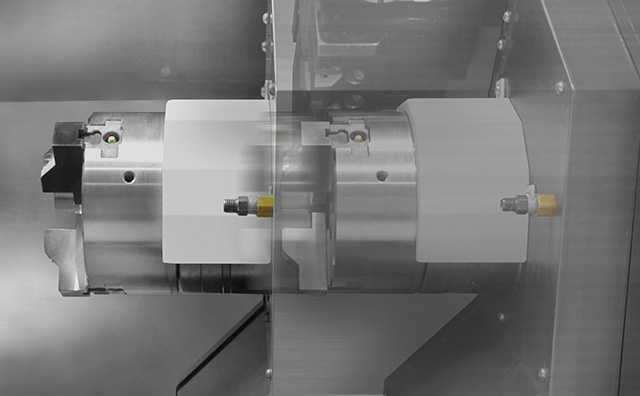

Second Spindle

By orienting both spindles, high-accuracy workpiece transfer from the main spindle to the second spindle can be performed for continuous machining. 100 Series: 5”, 200 / 300 Series: 6”

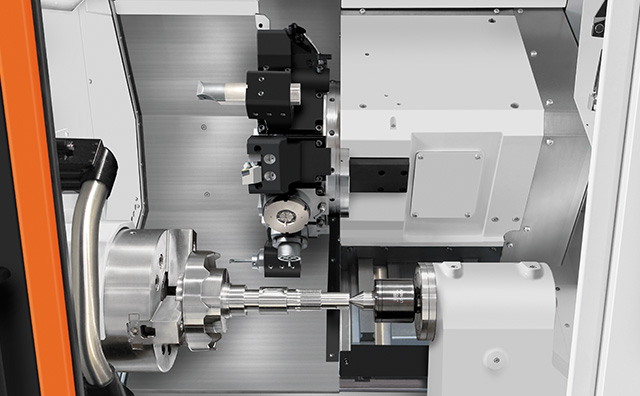

Y-axis for machining complex shapes

The long Y-axis stroke ensures for high-accuracy and high-efficiency machining of complex workpieces.
Y-axis stroke: 100（±50 ）mm

Extensive lineup with milling functions in all series

Machine can be selected according to your production style

	Spindle	Rotary tool spindle	Y-axis	Second spindle	Tailstock	Universal
100MY L	15 kW 6000 min^-1	5.5 kW 4500 min^-1	●	ー	●	500U
100MS L			ー	●	ー		ー
100MSY L			●	●	ー
200MY L	15 kW 5000 min^-1	5.5 kW 4500 min^-1	●	ー	●	500U	1000U
200MS L			ー	●	ー		ー
200MSY L			●	●	ー		ー
300MY L	15 kW 4000 min^-1	5.5 kW 4500 min^-1	●	ー	●	500U	1000U
300MS L			ー	●	ー		ー
300MSY L			●	●	ー		ー

High-productivity even in limited spaces

Machines with the same universal require the same floor space

For machines with the universal of 500U, all machines from the 100 series to the 300 series can be installed with the same floor space: 4.39m².
For machines with the universal of 1000U, series 200M, 200MY, 300M, 300MY can be installed with the same floor space: 5.96m².

1: | 4.39 m²(2600 mm ×1690 mm)
2: | 5.96 m²(3385 mm × 1760 mm)

Unsurpassed operability with high-speed / high-accuracy controls

Equipped with MAZATROL SmoothC

Programs can be easily made by simple key controls. With MAZATROL programming, even unexperienced operators can swiftly create programs. There is a home screen for each process. Progress and availability for production, programming, tool data management, setup, and maintenance can be managed centrally.

Various options for advanced automation

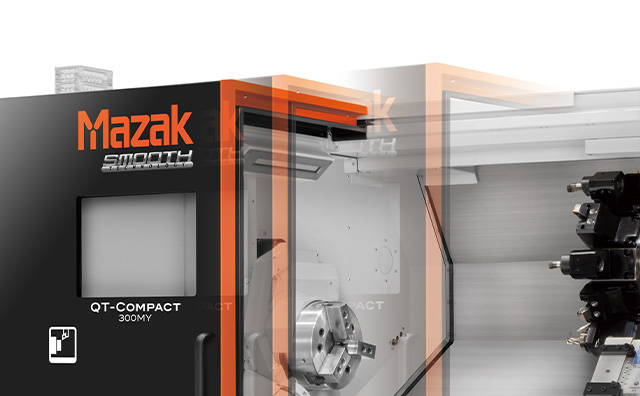

Automatic front door

It supports 3-step open/close speeds and has a built-in safety device to stop operation by a touch pressure sensor. Automatic opening/closing with area sensors are also available.

Tool eye

Tool setup is done by simply bringing the tool tip into contact with the tool eye, which will automatically register the tool to the CNC system, so tool setup time is considerably reduced.

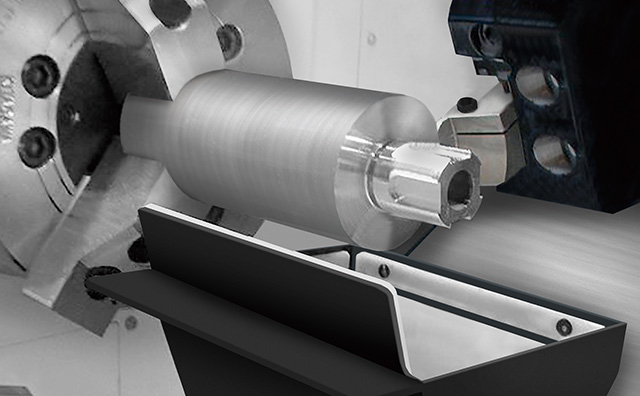

Automatic parts catcher

This function will automatically carry out finished workpieces into a parts box outside the machine. It can be combined with bar feeders or workpiece discharging conveyors to achieve an automated system.

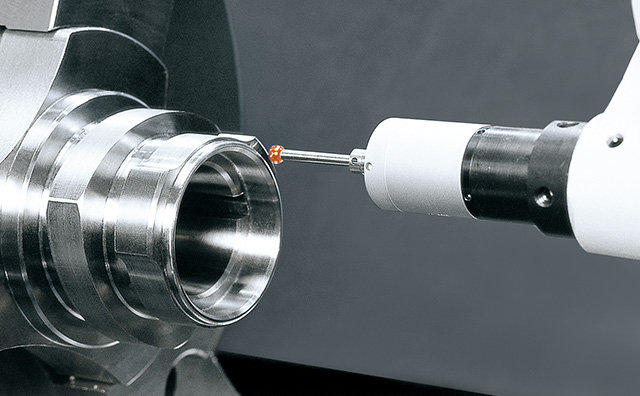

Automatic workpiece measurement

This function uses a turret-mounted touch sensor to automatically measure the inside and outside diameters, surface irregularity etc. of the machined workpiece to perform tool corrections and to maintain machining accuracy during unattended operation.
